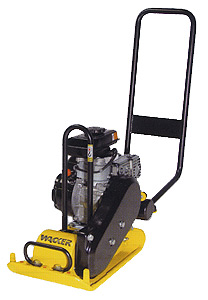

Designed for compaction in confined areas of granular soil in narrow trenches. These plates are ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction.
Specifications
- · Dimensions - Length x width x height 855 x 300 x 900
- · Lowest working height 500 mm
- · Size of base plate (L x W) 480 x 300 mm
- · Operating weight 50 kg
- · Shipping weight (including packaging) 55 kg
- · Shipping size 650 x 405 x 840 mm
- · Compaction depth (depending on soil) 25 cm
- · Compacted area (soil) 396 m2/h
- · Forward speed (soil) 23 m/min - 75 ft/min
- · Gradeability up to 30 %
- · Vibration frequency 97 Hz 5,800 Hz
- · Max. centrifugal force 10 kN 2,250 lb
- · Engine Type air-cooled, 4 cycle single cylinder, gasoline engine Type Honda
- · Rated power output according to DIN-ISO 3046 1,9 kW 2.5 hp at 3.600 1/min 3,600 rpm
- · Fuel tank capacity 1,4 l
- · Fuel consumption ,33 l/h
|
|
|
|
|
|
Designed for compaction in confined areas of granular soil in narrow trenches. These plates are ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction.
Specifications
- · Dimensions length x width x height 955 x 350 x 880 mm
- · Lowest working height 640 mm
- · Size of base plate (L x W) 520 x 350 mm
- · Operating weight 62 kg
- · Shipping weight (including packaging) 65 kg
- · Shipping size 650 x 405 x 840 mm
- · Compaction depth (depending on soil) 25 cm
- · Compacted area (soil) 550 m2/h
- · Forward speed (soil) 25 m/min
- · Gradeability up to 30 %
- · Vibration frequency 97 Hz 5,800 Hz
- · Max. centrifugal force 11 kN 2,470 lb
- · Engine Type air-cooled, 4 cycle single cylinder, Honda petrol engine
- · Fuel tank capacity 2,5 l
- · Fuel consumption 0,8 l/h
Features and Benefits
- · Special contoured running surfaces and rounded edges provide maximum performance and manoeuvrability.
- · Completely enclosed belt protected by a lightweight beltguard for reduced wear and minimal service.
- · Newly designed “low-vibration” guide handle greatly improves operator comfort and minimizes operator fatigue.
- · Heavy-duty shockmounts on engine console dampen vibrations thereby reducing wear on the components.
- · Exciter bearing design requires minimal maintenance for improved productivity.
- · Ergonomically designed lifting handles offer easier loading and unloading for operator during transport
|
|
|
|
|
Designed for compaction in confined areas of granular soil in narrow trenches. These plates are ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction.
Specifications
- · Dimensions length x width x height (handle in working position) 1.020 x 500 x 885 mm
- · Lowest working height 680 mm
- · Size of base plate (L x W) 590 x 500 mm
- · Operating weight 83 kg
- · Shipping weight (including packaging) 85 kg
- · Shipping size 675 x 535 x 800 mm
- · Compaction depth (depending on soil) 30 cm
- · Compacted area (soil) up to 615 m2/h
- · Forward speed (soil) up to 20 m/min
- · Gradeability up to 30 %
- · Vibration frequency 97 Hz 5,800 Hz
- · Max. centrifugal force 15 kN 3,375 lb
- · Engine Type air-cooled, 4 cycle single cylinder, Honda petrol engine
- · Fuel tank capacity 3,7 l
- · Fuel consumption 1,8 l/h
Features and Benefits
- · Special contoured running surfaces and rounded edges provide maximum performance and manoeuvrability.
- · Completely enclosed belt protected by a lightweight beltguard for reduced wear and minimal service.
- · Newly designed “low-vibration” guide handle greatly improves operator comfort and minimizes operator fatigue.
- · Heavy-duty shockmounts on engine console dampen vibrations thereby reducing wear on the components.
- · Exciter bearing design requires minimal maintenance for improved productivity.
- · Ergonomically designed lifting handles offer easier loading and unloading for operator during transport.
|
|
